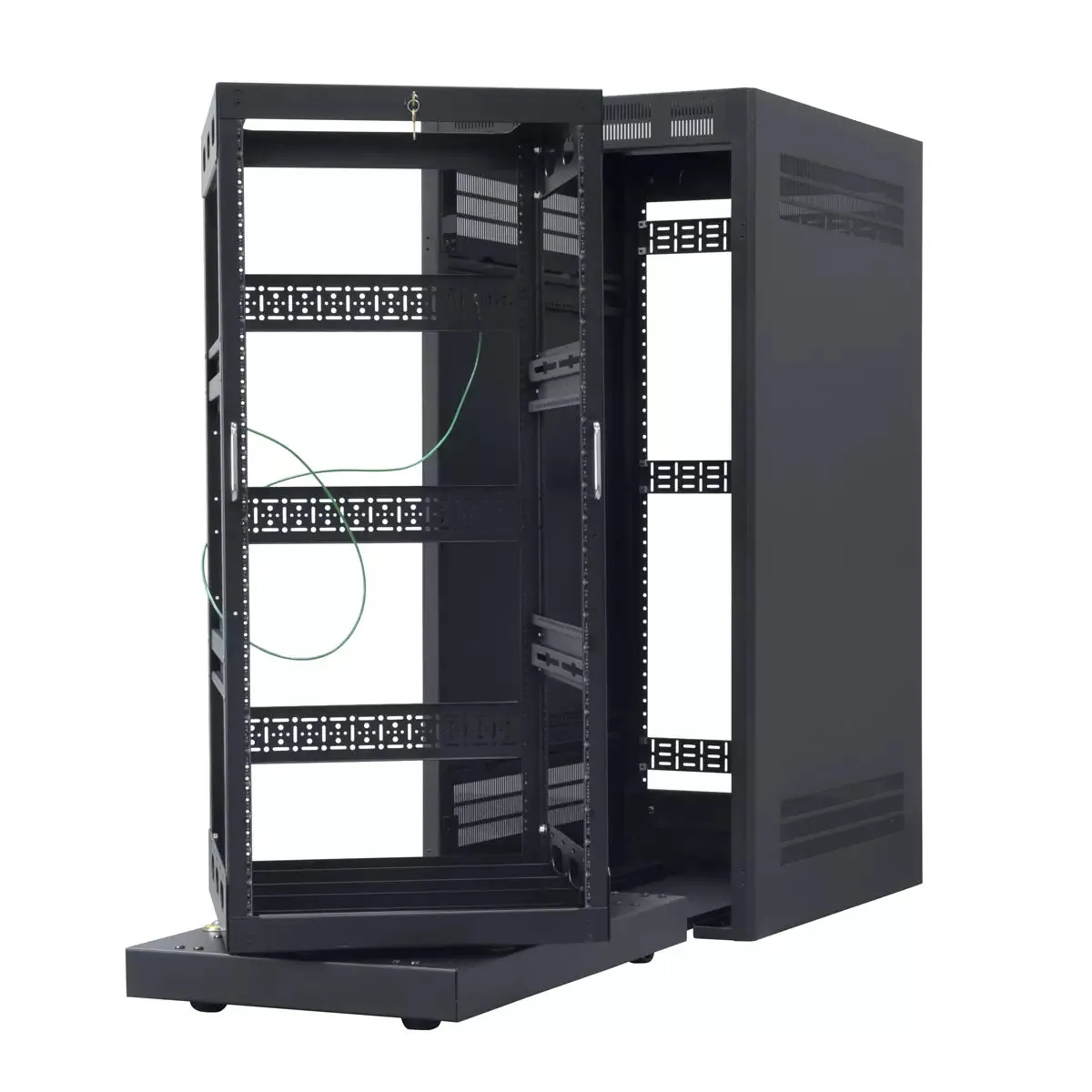

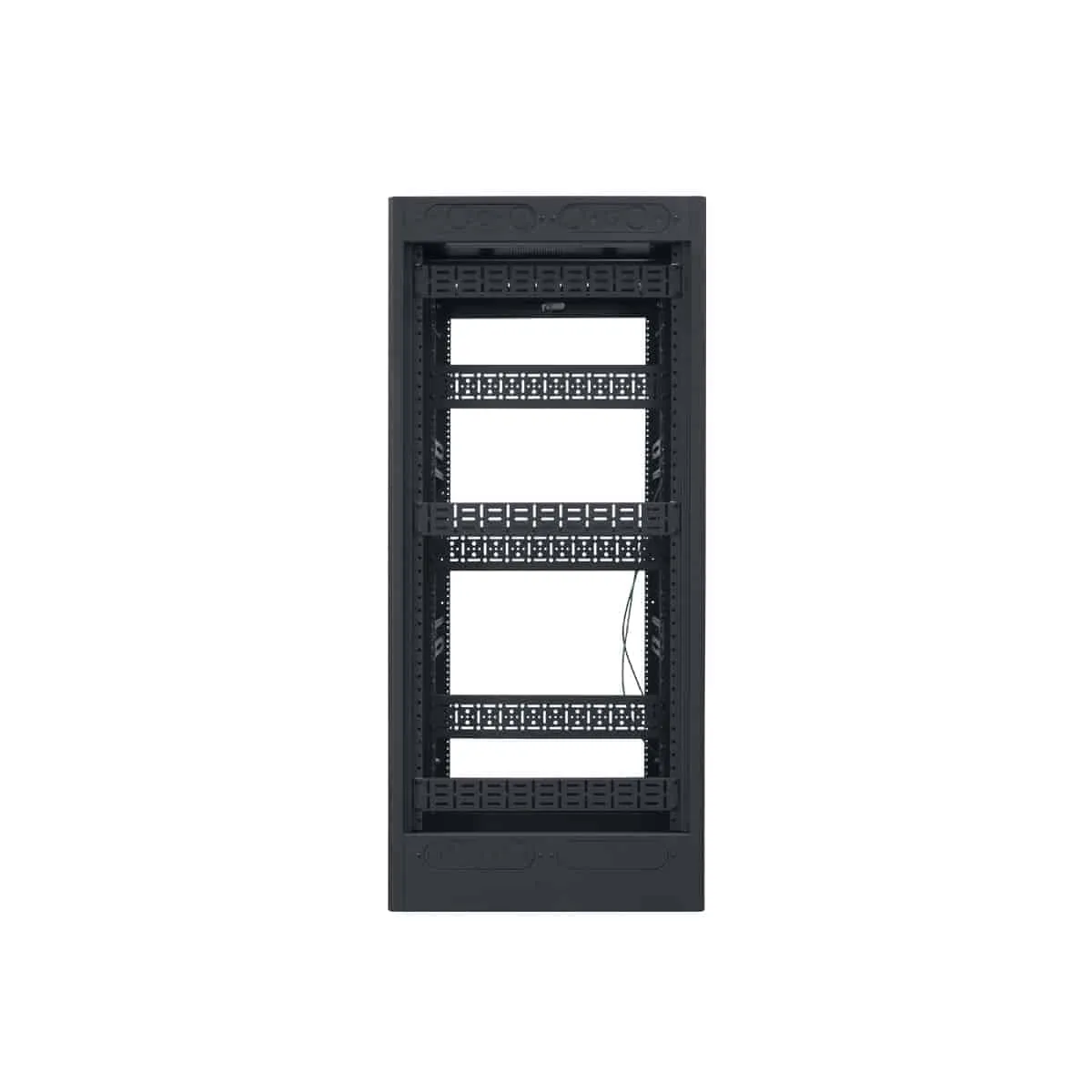

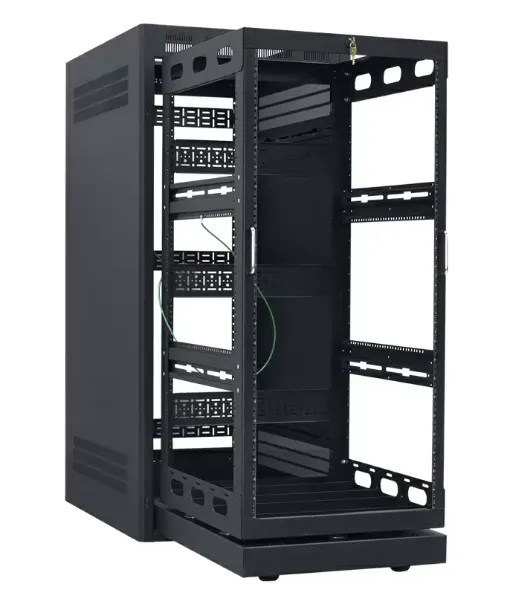

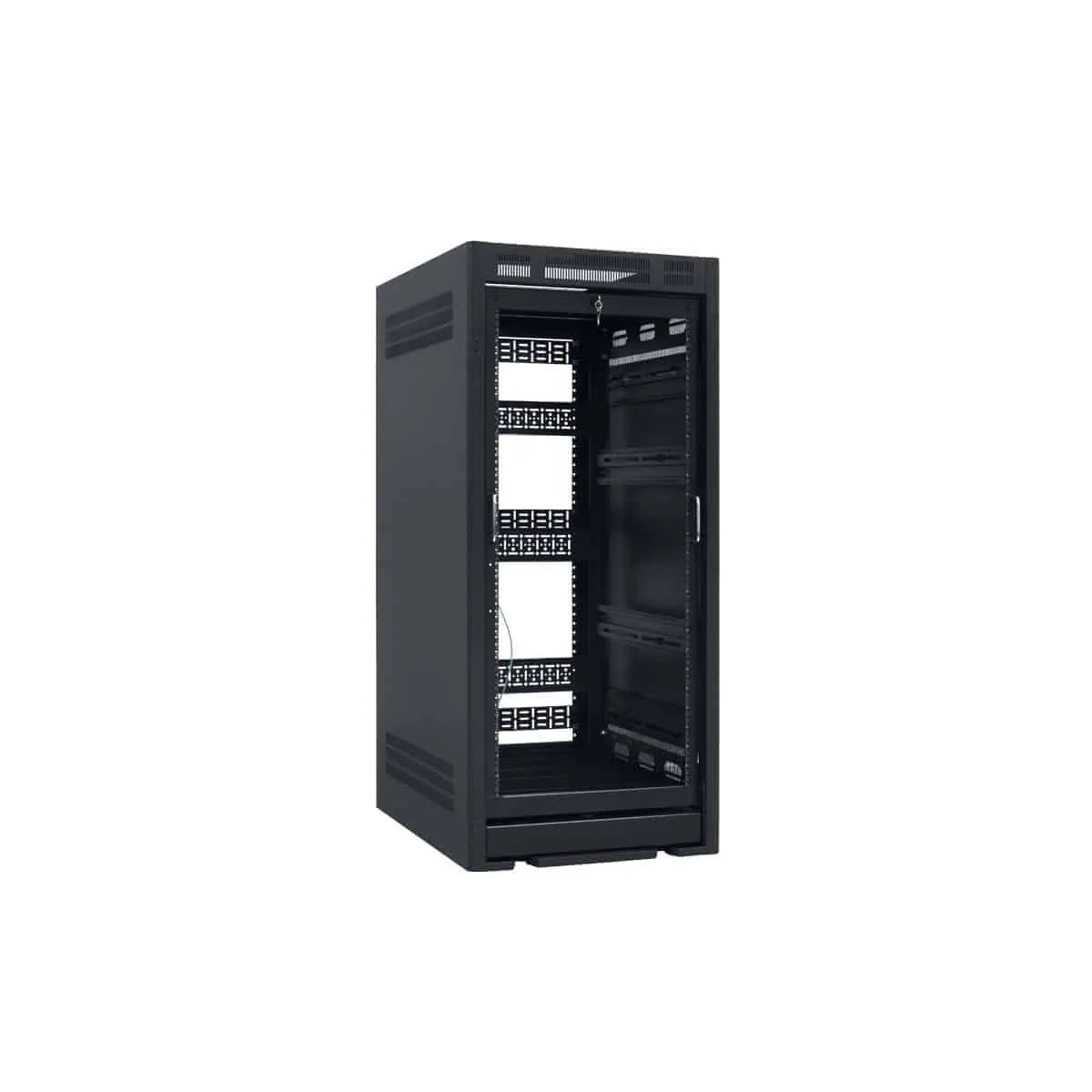

Two-part enclosure features a fully welded exterior cabinet plus an interior roll-out rack that rotates for easy access to mounted equipment, a design that’s well suited for back-to-back or against-the-wall installations. The inner rack with its platform base can completely disengage from the exterior cabinet to make shop wiring easier. The exterior cabinet features a fully-open back and a configurable top with a 10U opening. The two 19-inch panels mounted to the front of the rack during shipping can serve to close the top of the rack when installed. Includes ground wire (cabinet to rack). Black wrinkle textured powder epoxy finish.

Features

• Configurable top with solid closure panels
• Welded sides with upper/lower vents
• Open front and back (optional door and rear access cover)
• Open base
• Green ground wire (cabinet to interior rack)
• Side supports for optional accessories
• Pilot Point screws with captive washers
• Provisions for anchoring
• Beveled corners
• Black wrinkle powder epoxy finish
• Corner post mounting rails tapped 10-32 with RU increments marked
• Inner platform base with casters and stainless steel ball transfers
• Three lacing panels in cabinet and three in rack
• Load capacity 750 lbs.
• Installation: Allow 3.5 in. minimum clearance on both sides for rotation

Specifications

• Rack Space:  24U
• Height (Exterior Cabinet):  53.86 in.
• Width (Exterior Cabinet):  24.00 in.
• Depth (Exterior Cabinet):  32.875 in. (26.00 usable)
• Interior rack 50.11 in. high (24U) x 24 in. deep (26 in. useable allows equipment to extend 2 in. beyond rack)
• Maximum rollout 25.00 in. (57.875 in. overall rollout depth)
