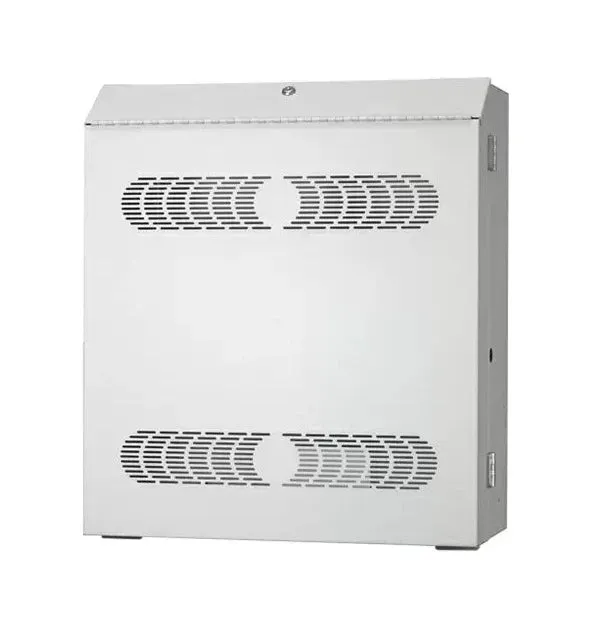

Low profile wall cabinet (overall height 28 inches) secures 19-inch network equipment with minimal intrusion into the room. Maximizing space with two mounting bays, the RCCD includes a deep front door which contributes to overall depth of about 11". The 4U upper bay features pivoting rails for easy access to cables, while the 6U lower bay holds equipment vertically with dual-punch rails for multiple mounting options. Network Grey powder epoxy finish.

Features

• 16-gauge steel construction with rear cutouts to fit over wall obstructions and aid cable management.

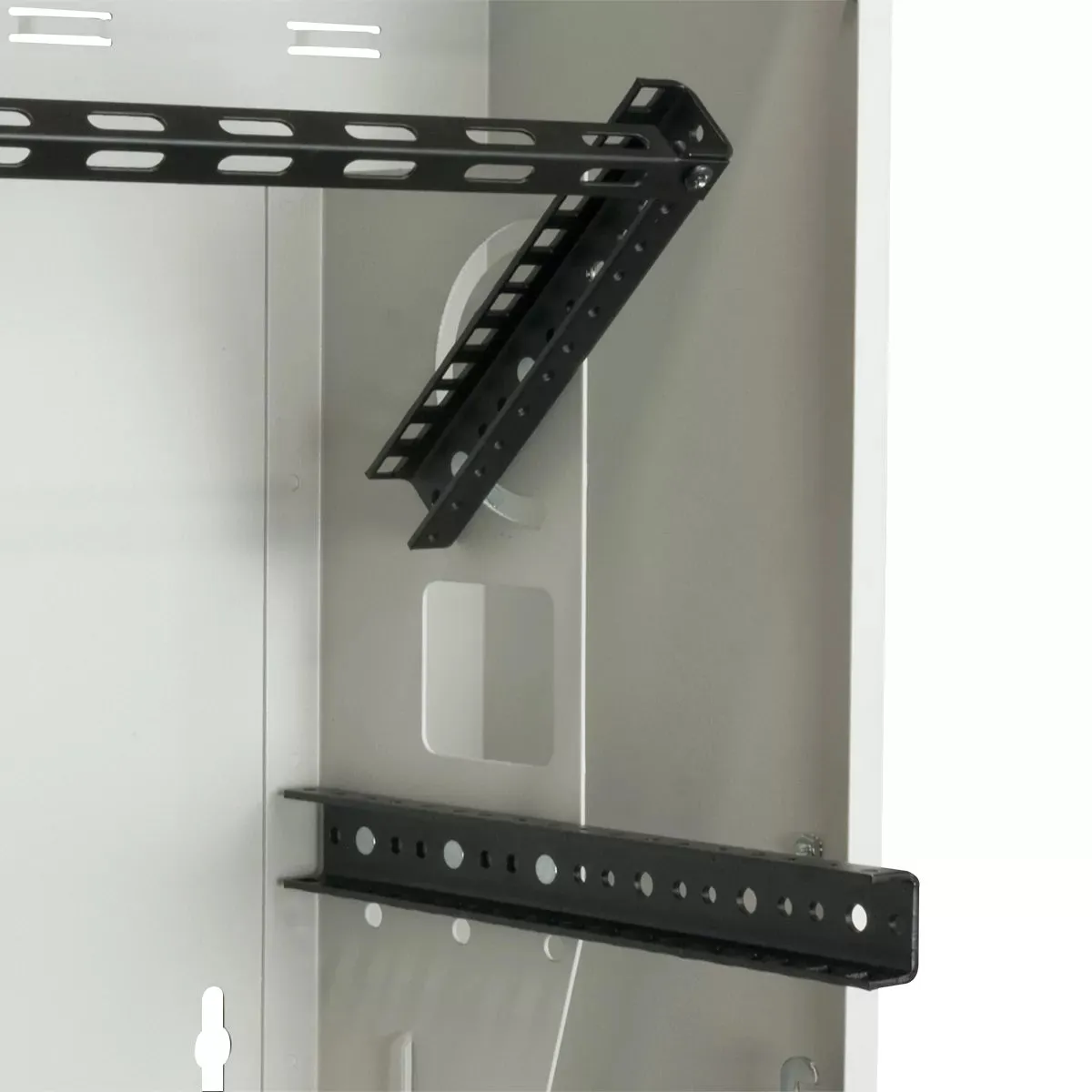

• 11-gauge rails in the 4U top section accommodate (horizontally-mounted) panel, such as a shallow patch panel. Rails, tapped 10-32, pivot down for access.
• 11-gauge rails in the 6U bottom section vertically-mount 19” equipment. Rails, tapped 10-32, can be adjusted (vertically) to accommodate equipment up to 21”D.

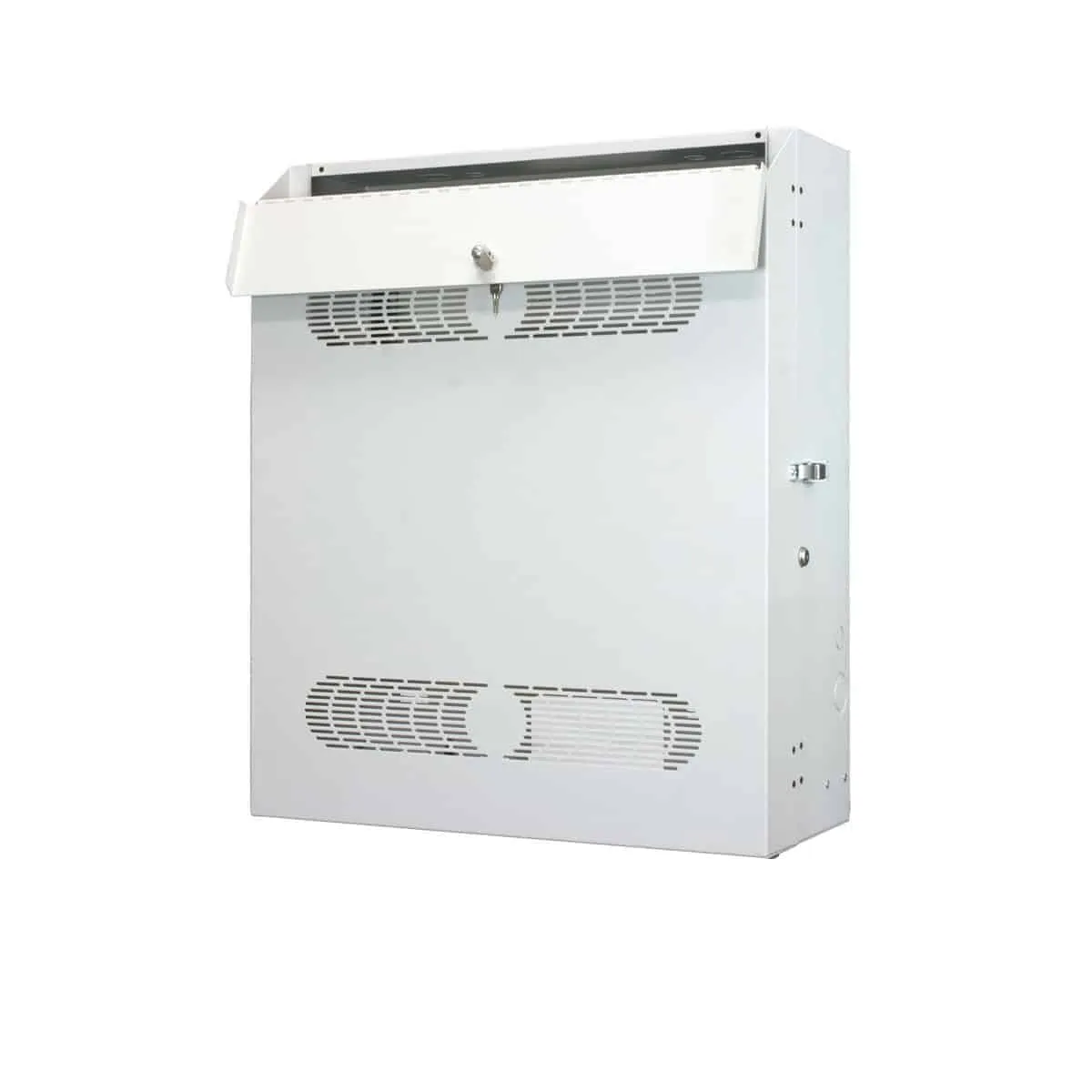

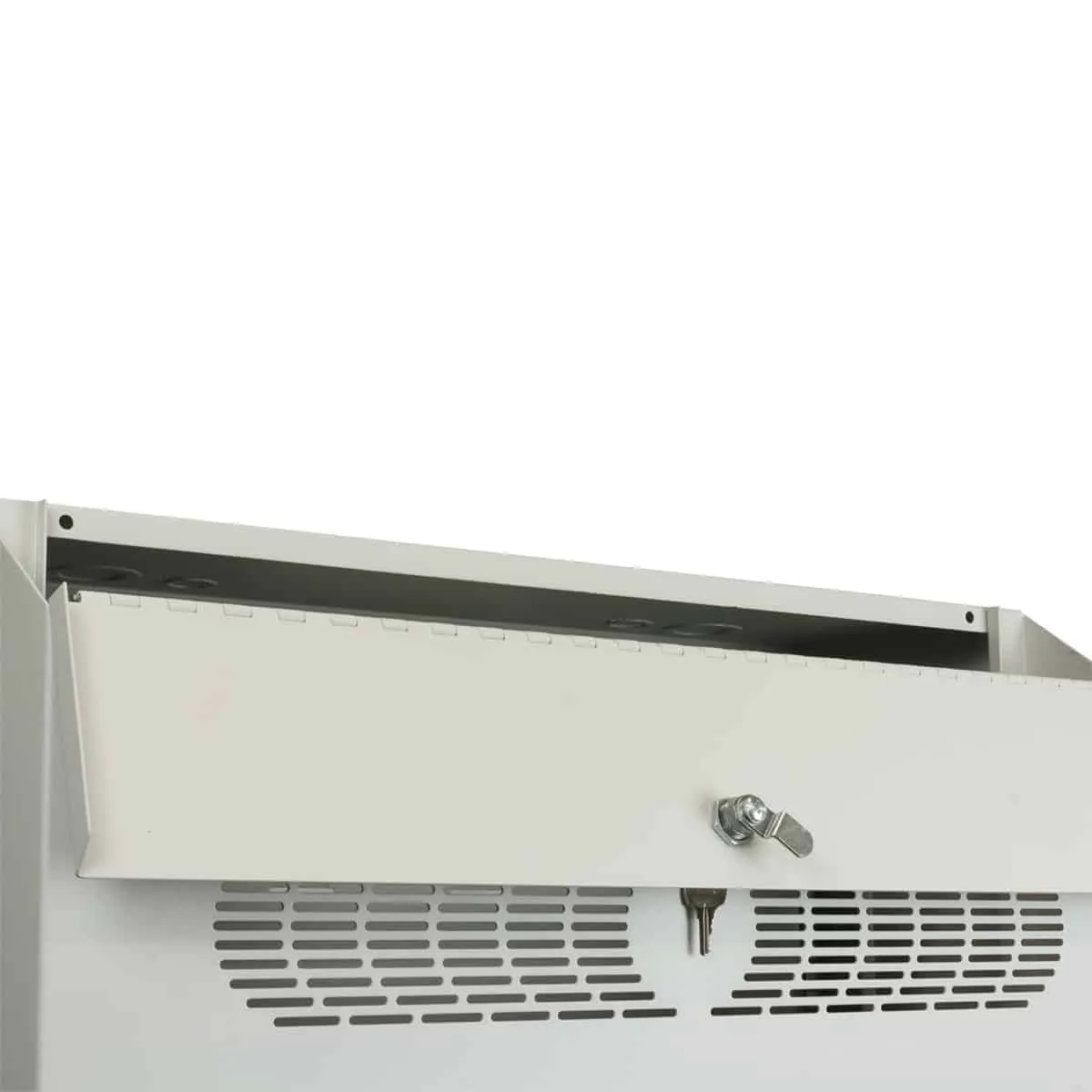

• Deep door features beveled edges, vents, and sloped top with hinge for quick access to top section without opening main compartment. Key lock.
• Knockouts in top, base, side
• Multiple bridge lances
• Vents in base accommodate (optional) single fan kits
• Includes electrical box in base
• Side key lock
• Network Grey powder epoxy finish

Specifications

• UPPER BAY Rack Space (horizontal-mount):  4U x 4.97″D usable
• LOWER BAY Rack Space (vertical-mount): 6U x  21″D usable
• OVERALL Measurements: 25.5”W x 28”H x 11.187”D
• Load Capacity:  150 lbs.
