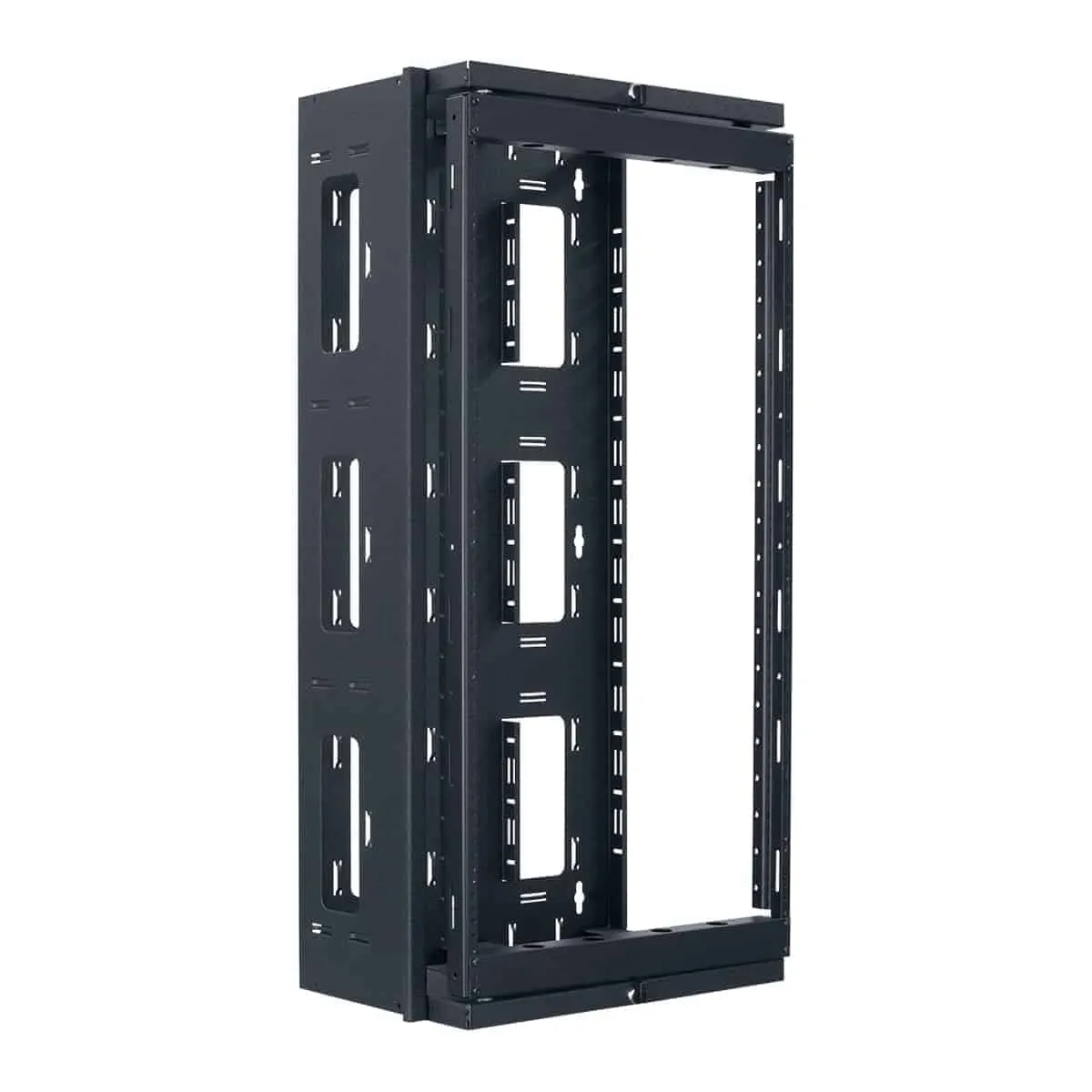

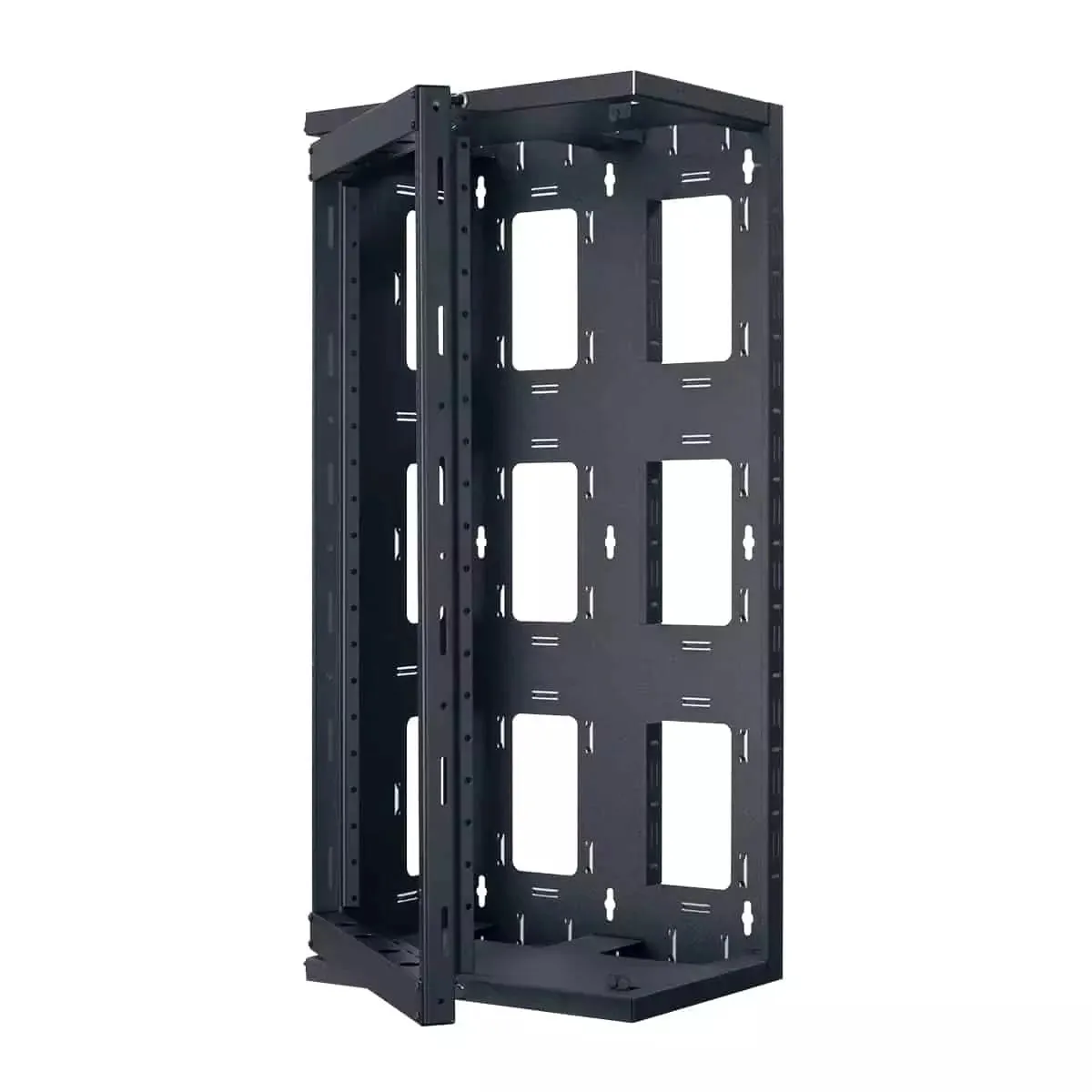

This open frame steel wall rack offers extraordinary access to mounted equipment and cables. The frame swings open 90 degrees, leaving a fully open side for easy access. The rack is ideally suited for telecommunications rooms, voice and data equipment, patch panels, routers, hubs, and switches. This sturdy design has a load capacity of 150 lbs. and requires two piece field assembly.

Features

• Heavy gauge steel construction
• Front gate swings open 90 degrees (left or right orientation)
• Thumb latch secures frame
• Mounting holes on 16 in. centers
• Abundant cable paths and tie points
• One pair fixed position rails tapped 10-32
• Black powder epoxy finish
• Two piece field assembly

Specifications

• Rack Space:  20U
• Height:  41.47 in.
• Width: 20.03 in.
• Depth:  13.21 in. (11.6 usable)
• Load Capacity:  150 lbs.
